CORE PIPELINE EQUIPMENT is a leading manufactures and supplies a variety of Line up Clamps. Our Pneumatic Internal Line up clamps-self-propelled ensure accurate alignment of two joints of pipe and are quick and easy to adjust for different pipe wall thickness. All our offered Internal Pneumatic line up clamps self-propelled have proven themselves in thousands of miles of pipeline construction even under the most extreme field conditions.
Our Pipe Joint internal Pneumatic line-up clamps come into operation inside pipes. Two separately controllable rings of plungers are pressed against the inner wall and position the Pneumatic Clamps exactly in the centre between the two prealigned pipes. This ensures that both pipes to be welded have the same central axis and no offset occurs.
Our internal pneumatic line-up clamps are designed for up to two pipe sizes and can be adjusted for all wall thicknesses in accordance with API 5L. We offer special versions for pipes with wall thicknesses not meeting this standard.

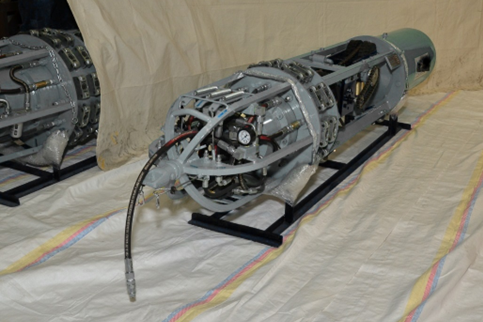

Internal Pneumatic Pipe Joint Clamp – Self-Propelled travel in the pipe itself by Pneumatic motor.
Internal Pneumatic Line up Clamp (Self-propelled) with Copper Back up Shoe
Copper back up shoes can be outfitted on clamps to provide a copper backing material for the initial welding root pass. Clamps with copper back up plates usually do not have centring stops.
Pneumatic Internal Line up Clamp with Purging Arrangement OR Set-up
Pneumatic Internal Line up Clamp with purging system required when welding occur in absence of oxygen. We are topmost manufacturer in Pneumatic purging system clamp and the same is designed around the principle of using two silicon purging tubes and gasket to create a seal either side of the weld, just far enough away from the weld not to be effected by heat but close enough to the joint to provide the fasted weld purge time.
Features:
⦁ Available in sizes 16″ to 60″ and adjustable for various wall thickness within clamp’s range
⦁ For efficient operation, the compressed air pressure should be 180-200 PSI (12.4-13.8 Bar)
⦁ Maximum safe working pressure is 225 PSI (15.5 Bar)
⦁ Easy removal and installation of copper back-up shoes.
⦁ Available with purging set up.
⦁ CORE Internal Pneumatic Line up Clamp assures a quick, accurate alignment of two joints of pipe during welding operation.
⦁ Front and rear locking heads operates independently to lock the clamp into position, realize accurate alignment of pipe joints quickly and accurately.
