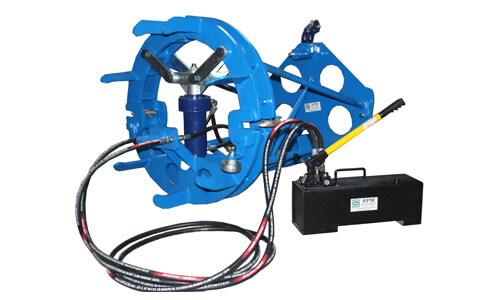

INTERNAL HYDRAULIC PIPE JOINT CLAMP

CORE PIPELINE EQUIPMENT is topmost manufacturer of Hydraulic Internal Line up Clamp. Our offered Pipe Joint Internal Hydraulic Clamp is precision fitted in pipe inner diameter. The key feature of Internal Hydraulic Pipe Joint Clamp accuracy that three side arm provided when align the internal pipe walls of the two pipes to be welded. To achieve a close 1. Frame 2. Side Arms 3. Guides 4. Toggle Bars 5. Locking latches 6. Hydraulic pump and cylinder 7. Wheels 8. Alignment of the pipes, the circumference of the side arms is machined to match the contour and wall thickness of the pipe. A toggle bar mechanism connected to the end of the hydraulic ram will expand as the hydraulic pump is rotated. The toggle bar length is calculated based on end distance that the side arms have to travel to make contact with the internal wall of the pipe. Toggle bars in a cantered position reach maximum force. However, toggle bars in an under or over toggle position as shown in the drawing below will not exert maximum force.
Features:
⦁ Easy to operate and store.
⦁ Requires no outside power unit.
⦁ Precision manufactured and proven in field.
⦁ Each clamp machined for specific wall thickness and pipe outer diameter.
⦁ Heavy-duty all-steel construction.
⦁ Available Standard size from 16″ to 60″ and also available through 100” up on request.
